Sonus Faber Sonetto Collection, la nuova linea di diffusori

Sarà presentata oggi, 10 maggio 2018, a Monaco di Baviera, la Sonus Faber Sonetto Collection, la nuova linea di diffusori del produttore italiano.

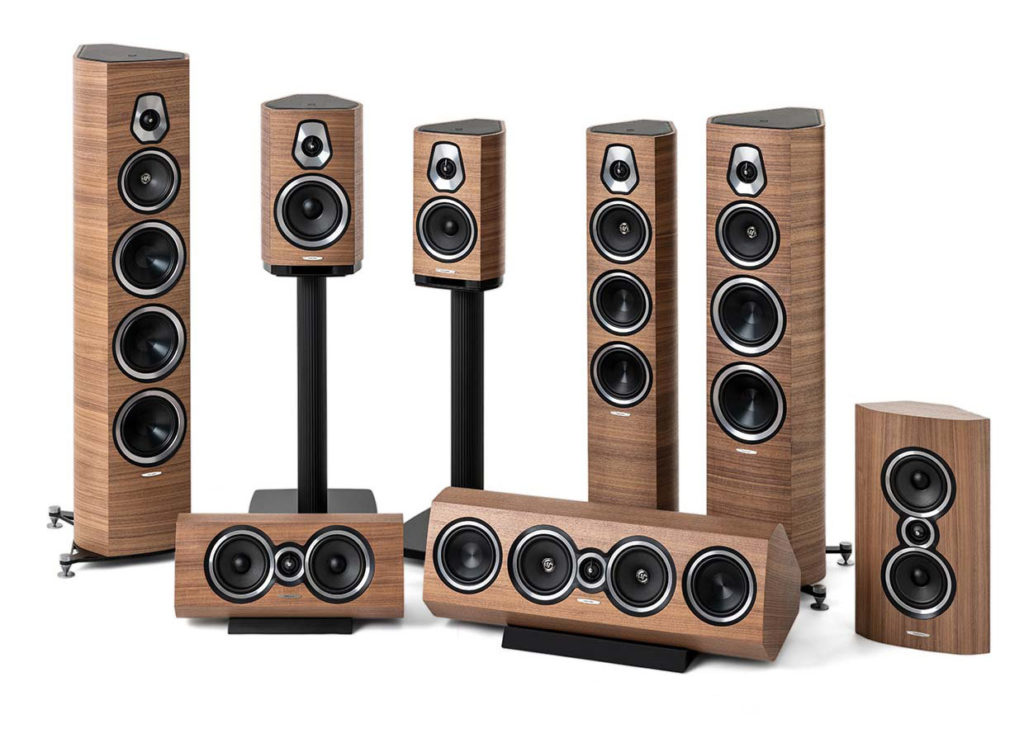

Sonetto_finiture_walnut_small

Sarà presentata oggi, 10 maggio 2018, a Monaco di Baviera, la Sonus Faber Sonetto Collection, la nuova linea di diffusori del produttore italiano.

È l’ultima creatura di un’azienda che negli ultimi sette anni si è profondamente rinnovata senza rinnegare lo spirito originale, che coniuga espressione tecnologica, design e realizzazione con cura artiginale.

La Sonus Faber Sonetto Collection è composta da otto elementi: tre modelli da pavimento, Sonetto VIII, Sonetto V e Sonetto III, due modelli da scaffale, Sonetto II e Sonetto I, due canali centrali, Sonetto Center II e Sonetto Center I e un modello “on-wall”, Sonetto Wall, il pezzo più versatile della collezione.

Progetto interamente sviluppato e prodotto in Italia, si basa su una serie di nuove tecnologie per l’accordatura delle camere acustiche e nuovi trasduttori, nuovi materiali e metodi produttivi.

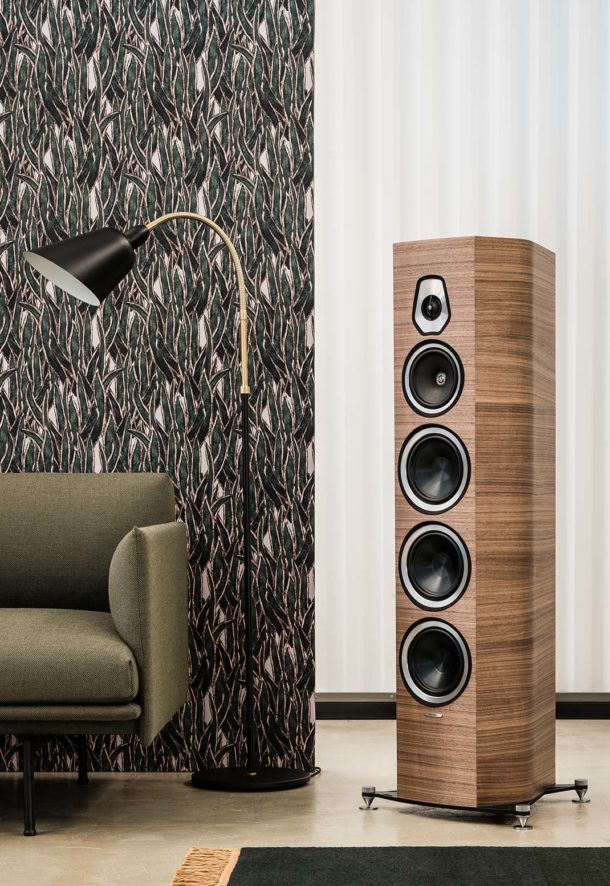

sonetto_collection_4

Rispetto al catalogo esistente, la nuova Sonus Faber Sonetto si ispira a modelli di gamma più alta; tale ispirazione si esplicita chiaramente nella presenza di molti elementi iconici. Innanzitutto, eredita dalla Collezione Olympica il top in pelle naturale, cucito a mano e impreziosito dal logo Sonus Faber impresso a caldo, ma non è tutto.

Per la prima volta in questa fascia di prezzo, la nuova collezione presenta l’iconica configurazione di tweeter e midrange, con il tweeter caratterizzato dalla tecnologia DADTM (Damped Apex Dome) e il midrange con il cono di cellulosa, attualmente disponibile solo in Olympica, Homage Tradition e nella collezione Reference (Aida, Lilium e Il Cremonese).

Questi nuovi diffusori conservano le caratteristiche della produzione storica del produttore di Arcugnano: suono naturale, materiali naturali, forma a liuto, finiture eccellenti tipiche dell’artigianato italiano e la produzione eseguita completamente nello stabilimento della Casa a Vicenza.

Il cabinet è in legno e il frontale è parte integrante della struttura del cabinet e si raccorda, senza soluzione di continuità, ai fianchi del diffusore.
Gli unici elementi che interrompono questa estrema pulizia di linee sono i ring estetici in alluminio/gun metal, che incorniciano i nuovi trasduttori e il top in pelle, cucito a mano e morbido al tatto.

Coerentemente con gli altri modelli più prestigiosi del marchio, è stato scelto l’alluminio, estruso o fresato da lastra, per la realizzazione dei supporti dei diffusori Sonetto. Gli stand e gli elementi strutturali dei piedini dei modelli da pavimento, in questo modo, garantiscono estrema rigidità.

I condotti reflex sono tutti posti alla base dei diffusori (ad eccezione dei canali centrali).

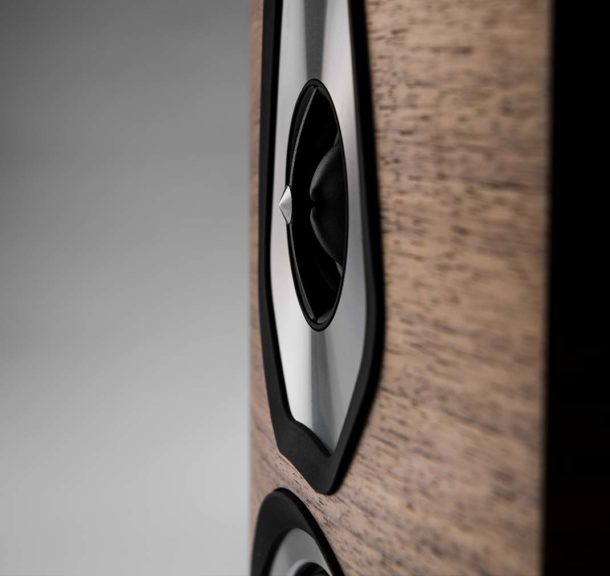

sonetto_collection_2

Come dicevamo, woofer, midrange e tweeter sono nuovi di zecca e progettati appositamente per questa nuova serie, mentre nei crossover ritroviamo con piacere la Paracross Topology.

La Sonus Faber Sonetto Collection arriverà nei negozi in estate

PREZZI AL PUBBLICO

I prezzi suggeriti al pubblico per la collezione sono:
Sonetto VIII: € 6.000
Sonetto V: € 4.500
Sonetto III: € 3.500
Sonetto II: € 2.000
Sonetto I: € 1.500
Sonetto Center II: € 1.800
Sonetto Center I: € 1.000
Sonetto Wall: € 1.000
Sonetto Stand: € 450

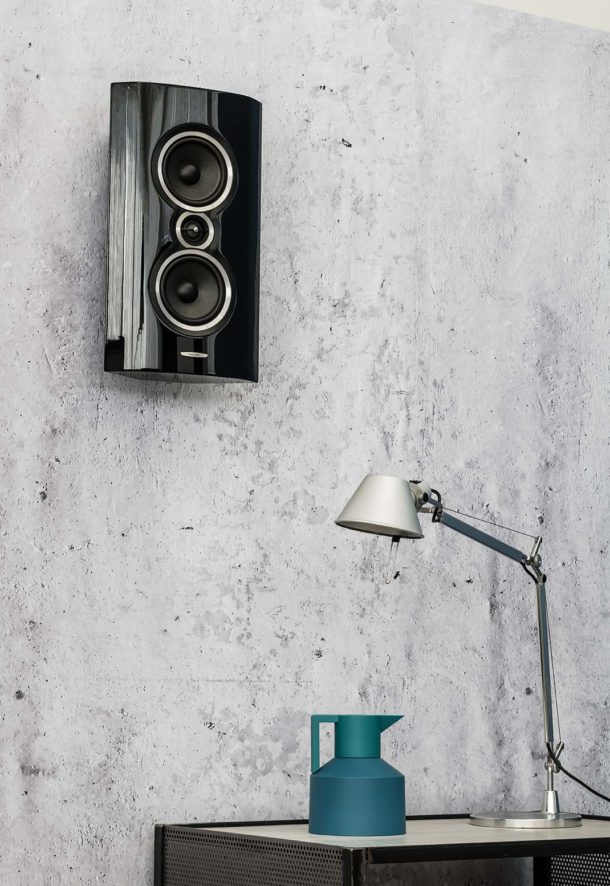

sonetto_wall_1

Caratteristiche tecniche nuovi diffusori  Sonus Faber

SONETTO VIII
Loudspeaker system: 3-way floorstanding loudspeaker system. Vented box design. Tweeter: 29mm high definition DAD driver. DKM dome diaphragm. Neo Magnet system. Visco-elastically baffle decoupling. Sonus faber design. Midrange: 150mm cone driver. Ultra-free compression basket, Sonus faber design. Special custom diaphragm made with a real time air dried non pressed blend of traditional cellulose pulp and other natural fibers, developed according to the most natural sound. Ultra-dynamic performance and high linearity. Sonus faber design. Woofers: 3x180mm cone drivers. Ultra-free compression basket, Sonus faber design. Aluminum cone for maximum speed. Ultra-dynamic performance and high linearity. Sonus faber design. Crossover: Anti-resonant design, optimized amplitude/phase response for optimal space/time performance. “Paracross topology”. Impedance compensation at low frequencies for a clear and friendly amplifier performance. Nano-technology coated, high-conductivity pcb tracks. Crossover frequencies: 270 and 3000 Hz.
Frequency response: 36 Hz – 25.000 Hz
Sensitivity (2.83 V/1 m): 90 dB SP
Nominal impedance: 4 ohm
Suggested amplifier power output: 50 W – 300 W without clipping Long-term max input voltage (IEC-268-5): 22 V rms
Total dimensions (H x W x D): 1188 x 283 x 427 mm
Weight each: 26,3 Kg

SONETTO V
Loudspeaker system: 3-way floorstanding loudspeaker system. Vented box design. Tweeter: 29mm high definition DAD driver. DKM dome diaphragm. Visco-elastically baffle decoupling. Sonus faber design. Midrange: 150mm cone driver. Ultra-free compression basket, Sonus faber design. Special custom diaphragm made with a real time air dried non pressed blend of traditional cellulose pulp and other natural fibers, developed according to the most natural sound. Ultra-dynamic performance and high linearity. Sonus faber design. Woofers: 2x180mm cone drivers. Ultra-free compression basket, Sonus faber design. Aluminum cone for maximum speed. Ultra-dynamic performance and high linearity. Sonus faber design. Crossover: Anti-resonant design, optimized amplitude/phase response for optimal space/time performance. “Paracross topology”. Impedance compensation at low frequencies for a clear and friendly amplifier performance. Crossover frequencies: 235 and 3000 Hz.
Frequency response: 38 Hz – 25.000 Hz
Sensitivity (2.83 V/1 m): 90 dB SPL
Nominal impedance: 4 ohm
Suggested amplifier power output: 50 W – 300 W without clipping Long-term max input voltage (IEC-268-5): 22 V rms
Total dimensions (H x W x D): 1072 x 258 x 409 mm
Weight each: 22,6 Kg

SONETTO III
Loudspeaker system: 3-way floorstanding loudspeaker system. Vented box design. Tweeter: 29mm high definition DAD driver. DKM dome diaphragm. Visco-elastically baffle decoupling. Sonus faber design. Midrange: 150mm cone driver. Ultra-free compression basket, Sonus faber design. Special custom diaphragm made with a real time air dried non pressed blend of traditional cellulose pulp and other natural fibers, developed according to the most natural sound. Ultra-dynamic performance and high linearity. Sonus faber design. Woofers: 2x150mm cone drivers. Ultra-free compression basket, Sonus faber design. Aluminum cone for maximum speed. Ultra-dynamic performance and high linearity. Sonus faber design. Crossover: Anti-resonant design, optimized amplitude/phase response for optimal space/time performance. “Paracross topology”. Impedance compensation at low frequencies for a clear and friendly amplifier performance. Crossover frequencies: 220 and 3250 Hz.
Frequency response: 42 Hz – 25.000 Hz
Sensitivity (2.83 V/1 m): 89 dB SPL
Nominal impedance: 4 ohm
Suggested amplifier power output: 50 W – 250 W without clipping Long-term max input voltage (IEC-268-5): 22 V rms
Total dimensions (H x W x D): 1018 x 219 x 305 mm
Weight each: 16 Kg

SONETTO II
Loudspeaker system: 2-way shelf loudspeaker system. Vented box design. Tweeter: 29mm high definition DAD driver. DKM dome diaphragm. Visco-elastically baffle decoupling. Sonus faber design Midwoofer: 165mm cone driver. Ultra-free compression basket, Sonus faber design. Special custom diaphragm made with a real time air dried non pressed blend of traditional cellulose pulp and other natural fibers, developed according to the most natural sound. Ultra-dynamic performance and high linearity. Sonus faber design. Crossover: Anti-resonant design, optimized amplitude/phase response for optimal space/time performance. “Paracross topology”. Impedance compensation at low frequencies for a clear and friendly amplifier performance. Crossover frequency: 2650 Hz.
Frequency response: 42 Hz – 25.000 Hz
Sensitivity (2.83V/1m): 87 dB SPL
Nominal impedance: 4 ohm
Suggested amplifier power output: 40 W – 200 W without clipping Long-term max input voltage (IEC-268-5): 20 V rms
Total dimensions (H x W x D): 370 (1101 stand incl.) x 250 x 334 mm
Weight each: 6,8 Kg (stand not included)

SONETTO I
Loudspeaker system: 2 way shelf loudspeaker system. Vented box design. Tweeter: 29mm high definition DAD driver. DKM dome diaphragm. Visco-elastically baffle decoupling. Sonus faber design. Midwoofer: 150mm cone driver. Ultra-free compression basket, Sonus faber design. Special custom diaphragm made with a real time air dried non pressed blend of traditional cellulose pulp and other natural fibers, developed according to the most natural sound. Ultra-dynamic performance and high linearity. Sonus faber design. Crossover: Anti-resonant design, optimized amplitude/phase response for optimal space/time performance. “Paracross topology”. Crossover frequency: 2500 Hz.
Frequency response: 45 Hz – 25.000 Hz
Sensitivity (2.83 V/1 m): 87 dB SPL
Nominal impedance: 4 ohm
Suggested amplifier power output: 30 W – 150 W without clipping Long-term max input voltage (IEC-268-5): 20 V rms
Total dimensions (H x W x D): 359 (1090 stand incl.) x 219 x 305 mm
Weight (Kg) each: 5,5 Kg (stand not included)

SONETTO CENTER II
Loudspeaker system: 3-way shelf loudspeaker system. Vented box design. Tweeter: 29mm high definition DAD driver. DKM dome diaphragm. Neo Magnet system. Visco-elastically baffle decoupling. Sonus faber design. Midranges: 2 x 150mm cone drivers. Ultra-free compression basket, Sonus faber design. Special custom diaphragm made with a real time air dried non pressed blend of traditional cellulose pulp and other natural fibers, developed according to the most natural sound. Ultra-dynamic performance and high linearity. Sonus faber design. Woofers: 2 x 150mm cone drivers. Ultra-free compression basket, Sonus faber design. Aluminum cone for maximum speed. Ultra-dynamic performance and high linearity. Sonus faber design Crossover: Anti-resonant design, optimized amplitude/phase response for optimal space/time performance. “Paracross topology”. Impedance compensation at low frequencies for a clear and friendly amplifier performance. Crossover frequency: 220 and 1650 Hz.
Frequency response: 42 Hz – 25.000 Hz
Sensitivity (2.83 V/1 m): 91 dB SPL
Nominal impedance: 4 ohm
Suggested amplifier power output: 50 W – 300 W without clipping Long-term max input voltage (IEC-268-5): 22 V rms
Total dimensions (H x W x D): 289 x 743 x 409 mm
Weight each: 16,2 Kg

SONETTO CENTER I
Loudspeaker system: 2-way shelf loudspeaker system. Vented box design. Tweeter: 29mm high definition DAD driver. DKM dome diaphragm. Neo Magnet system. Visco-elastically baffle decoupling. Sonus faber design. Midwoofers: 2 x 150mm cone drivers. Ultra-free compression basket, custom Sonus faber design. Special custom diaphragm made with a real time air dried, non pressed blend of traditional cellulose pulp and other natural fibers, developed according to the most natural sound. Ultra-dynamic performance and high linearity. Sonus faber design. Crossover: Anti-resonant design, optimized amplitude/phase response for optimal space/time performance. “Paracross topology”. Crossover frequency: 1550 Hz.
Frequency response: 60 Hz – 25.000 Hz
Sensitivity (2.83 V/1 m): 90 dB SPL
Nominal impedance: 4 ohm
Suggested amplifier power output: 50 W – 200 W without clipping Long-term max input voltage (IEC-268-5): 20 V rms
Total dimensions (H x W x D): 242 x 495 x 303 mm
Weight each: 6,5 Kg

SONETTO WALL
Loudspeaker system: 2-way on-wall speaker. Passive radiator design. Tweeter: 29mm high definition DAD driver. DKM dome diaphragm. Neo Magnet system. Visco-elastically baffle decoupling. Sonus faber design. Midwoofer: 150mm cone driver. Ultra-free compression basket, Sonus faber design. Special custom diaphragm is made with a real time air dried non pressed blend of traditional cellulose pulp and other natural fibers, developed according to the most natural sound. Ultra-dynamic performance and high linearity. Sonus faber design. Crossover: Anti-resonant design, optimized amplitude/phase response for optimal space/time performance. “Paracross topology”. Crossover frequency: 3800 Hz.
Frequency response: 60 Hz – 25.000 Hz
Sensitivity (2.83 V/1 m): 89 dB SPL
Nominal impedance: 4 ohm
Suggested amplifier power output: 30 W – 150 W without clipping Long-term max input voltage (IEC-268-5): 20 V rms
Total dimensions (H x W x D): 500 x 291 x 163 mm
Weight each: 4,8 Kg

Produttore: SONUS FABER
